6 Megapixel resolution
C-mount with 16 mm (1") image circle
Wide-band multi-coating
Precision aspherical technology
Floating mechanism design
The Kowa LM35JC5M2 lens has an image circle of 16 mm. We recommend pairing it with cameras having a 10 to 16 mm (up to 1" format) sensor.
This lens delivers 160 lp/mm resolution at center, and 120 lp/mm in the corners, so it is appropriate for cameras having pixels as small as 3 microns. Kowa’s wide-band multi-coating reduces glare and refraction. Expect high performance even with the iris fully open.
The compact metal housing moves the aspherical elements independently, virtually eliminating optical aberrations across all working distances. The focus and aperture adjustments lock-down with thumb-screws to resist equipment vibration.
Mechanical
| Lens Mount: | C-Mount |
| Length: | 84.0 mm |
| Filter Thread: | M40.5 x .5 |
Optical
| Lens Type: | General |
| Focal Length: | 12 mm |
| Center Resolving Power: | 3.13 µm, 160 lp/mm |
| Corner Resolving Power: | 4.16 µm, 120 lp/mm |
| Minimum Object Distance: | 100 mm |
| F#: | 1.8 - 16.0 |
| Image Circle: | 16.00 mm (1") |
Learn about lenses in our Lens Tech Center.
Loading...

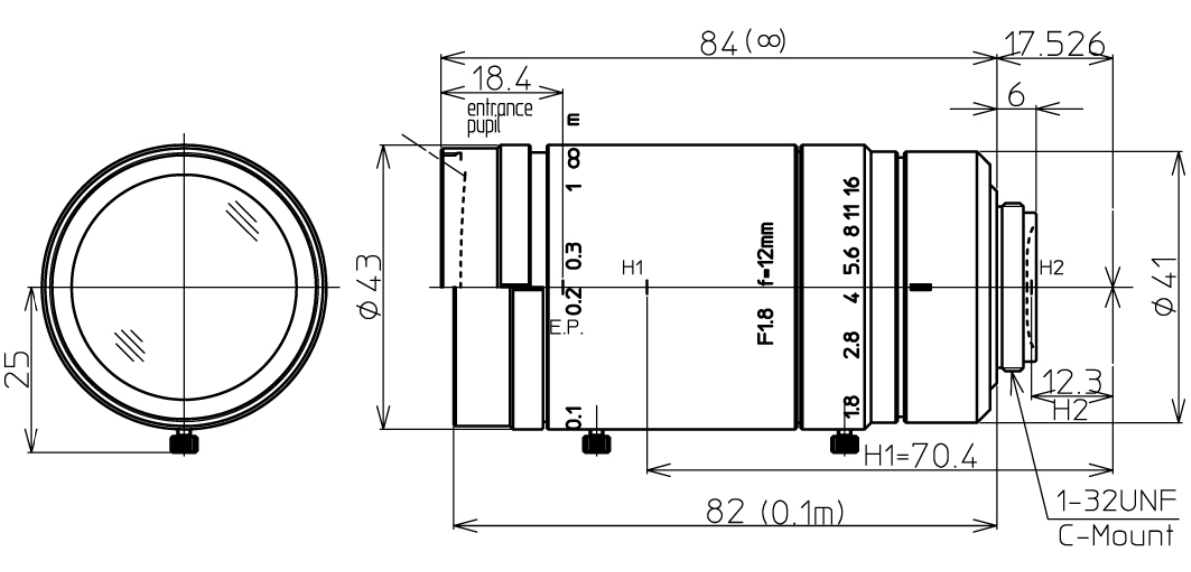

See Resources section below to download drawings.
